| 서지 전압: | 2.85V | 공칭 용량: | 1.0F |
|---|---|---|---|
| ESR: | DC @25℃, 1500MΩ 이하 AC 1kHz@25℃ 240MΩ 이하 | 정격 전압: | 2.7V |
| 정상상태 습열: | +40℃, 90--95%RH,240h,︱ΔC/ C︱≤30%, 지정된 값의 배ESR≤4 | 사용자 정의하십시오: | 샘플 서비스를 제공하세요 |
| 사이클 내구성: | 실온 사이클 500,000회에서 정격 전압, 충전 및 방전 실험을 추가합니다.︱ΔC/C︱≤30% ESR≤4 | 충전/방전 시간: | 빠른 |
| 전력 밀도: | 단위 질량 또는 단위 부피당 방출 (또는 흡수) 할 수있는 전력 | ||
| 강조하다: | 3.0V3F super capacitor,super capacitor for smart meters,electricity meter super capacitor |
||

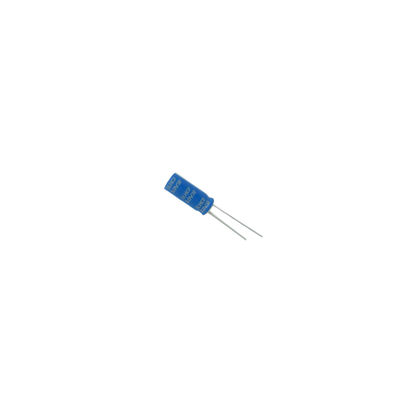

The Super Capacitor is a cutting-edge High Capacity Capacitor that offers exceptional performance and reliability in various applications. With its lightweight design, this capacitor is ideal for use in portable electronic devices, automotive systems, renewable energy systems, and more.
When it comes to endurance, the Super Capacitor excels in challenging conditions. It can withstand steady-state damp heat environments with temperatures reaching up to +40℃ and humidity levels of 90-95%RH for 240 hours. During this test, the capacitor maintains its stability, with a maximum change in capacitance of less than 30% and an ESR (Equivalent Series Resistance) that does not exceed 4 times the specified value.
With a nominal capacity of 1.0F, the Super Capacitor delivers consistent and reliable performance, making it a dependable choice for demanding applications. Even under high-temperature loads of up to +85℃ and voltage levels of 2.7V for 1000 hours, this capacitor remains robust, with a capacitance change of less than 30% and an ESR that stays below 4.
One of the standout features of the Super Capacitor is its rapid charge/discharge time, allowing for quick energy transfer and efficient operation. This capability makes it an excellent choice for applications where fast energy storage and release are essential.
| Parameter | Specification |
|---|---|
| Steady-state damp heat | +40℃, 90-95%RH, 240h, |△C/C|≤30%, Times The Specified Value ESR≤4 |
| Nominal capacity | 1.0F |
| ESR | DC @25℃, ≤1500 MΩ; AC 1kHz@25℃ ≤240 MΩ |
| Operating temperature | -40~ +85 ℃ @2.7V |
| Weight | Lightweight |
| Customize | Provide Sample Services |
| Rated voltage | 2.7V |
| Cycle durability | Add The Rated Voltage, Charge And Discharge Experiments At Room Temperature Cycle 500,000 Times. |△C/C|≤30% ESR≤4 |
| Leakage current (@25℃) | 6 μA for 72hrs |
| High temperature load | +85℃≤2.7V, 1000h, |△C/C|≤30%, ESR≤4 |
High Capacity Capacitor from CL, originating from China, is a versatile and reliable energy storage solution suitable for various application occasions and scenarios.
With a steady-state damp heat tolerance of +40℃ at 90-95%RH for 240 hours, the High Capacity Capacitor proves its durability and stability under challenging environmental conditions, ensuring a reliable performance with a maximum allowable change in capacitance of less than 30% and ESR not exceeding 4 times the specified value.
The High Capacity Capacitor's peak current rating of 0.54A makes it ideal for applications requiring high bursts of power in a short duration, providing a dependable energy source for peak load demands.
Operating within a wide temperature range of -40 to +85 ℃ at 2.7V, this capacitor is designed to function efficiently in both extreme cold and hot environments. Its temperature characteristics showcase exceptional performance with a maximum allowable change in capacitance of less than 30% and ESR not exceeding 4 at -40℃ and +85℃.
The ESR specifications of the High Capacity Capacitor are impressive, with DC resistance not exceeding 1500 MΩ at 25℃ and AC resistance at 1kHz not surpassing 240 MΩ at the same temperature. These low ESR values contribute to the capacitor's high efficiency and reliable energy storage capabilities.
Whether used in automotive, industrial, renewable energy, or consumer electronics applications, the High Capacity Capacitor from CL excels in delivering consistent and stable power supply, making it an excellent choice for a wide range of demanding scenarios.
Our Product Technical Support and Services for the Super Capacitor product are designed to provide comprehensive assistance to our customers. Our team of knowledgeable experts is available to address any technical questions, troubleshoot issues, and offer guidance on product usage. Whether you need help with installation, operation, or maintenance, our technical support team is here to assist you every step of the way.
Product Packaging: The super capacitor is carefully packed in a sturdy cardboard box to ensure safe transportation. Inside the box, the capacitor is protected with bubble wrap to prevent any damage during shipping.
Shipping Information: We offer fast and reliable shipping for the super capacitor product. Orders are typically processed within 1-2 business days and shipped via a reputable courier service. Customers will receive a tracking number to monitor the shipment status.
