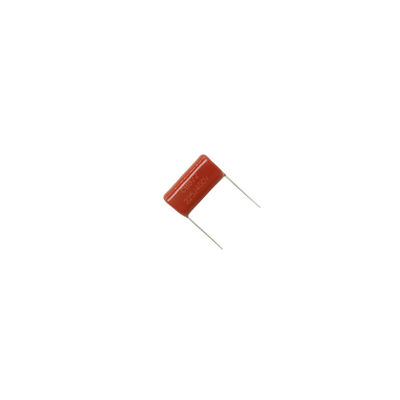

Metallized Polypropylene Film Capacitor CBB22 225J400V P15MM
Applications in analog and signal processing circuits
Product Description
The Metallized Polypropylene Film Capacitor is a high-quality electronic component designed for various applications that require reliable capacitance. With a capacitance range of 0.01uF to 2.2uF, this capacitor offers flexibility in meeting different circuit requirements.
Operating within a wide temperature range of -40°C to +85°C, this capacitor ensures stable performance even in extreme environmental conditions. Whether in hot or cold environments, the Metallized Polypropylene Film Capacitor maintains its capacitance values, making it suitable for diverse industrial and electronic applications.
Equipped with lead lengths ranging from 5mm to 50mm, this capacitor provides options for different mounting configurations. The lead spacing of 2.5mm to 10mm offers compatibility with various PCB layouts, enhancing ease of installation and circuit design flexibility.
One of the key features of the Metallized Polypropylene Film Capacitor is its low dissipation factor of less than or equal to 0.1. This attribute ensures minimal energy loss and high efficiency in circuit operation, making it an ideal choice for applications where low power loss is crucial.
Whether used in power supplies, filters, coupling circuits, or timing applications, the Metallized Polypropylene Film Capacitor delivers reliable performance and precise capacitance values. Its durable construction and high-quality materials make it a dependable component for demanding electronic systems.
Manufactured to stringent quality standards, this capacitor undergoes thorough testing to ensure consistent performance and reliability. Its metallized polypropylene film construction offers excellent insulation properties and high dielectric strength, enhancing the overall durability and safety of the capacitor.
With a compact design and versatile specifications, the Metallized Polypropylene Film Capacitor is a versatile component suitable for a wide range of electronic projects. Its compatibility with various circuit configurations and robust construction make it a preferred choice among engineers and hobbyists alike.
Whether you are designing a new electronic device or replacing capacitors in an existing circuit, the Metallized Polypropylene Film Capacitor provides the capacitance range, temperature tolerance, and performance characteristics needed for a successful project. Trust in the reliability and quality of this capacitor for your electronic applications.
Features
- Product Name: Metallized Polypropylene Film Capacitor
- Application: Power Supply, Automotive, Industrial
- Lead Type: Radial, Axial
- Size:
- Diameter: 6.3mm-18mm
- Length: 6.3mm-20mm
- Insulation Resistance: >=10000MΩ
- Rated Voltage: 50V-1000V
Technical Parameters
| Parameter |
Value |
| Lead Length |
5mm-50mm |
| Operating Temperature |
-40°C~+85°C |
| Application |
Power Supply, Automotive, Industrial |
| Size |
Diameter: 6.3mm-18mm; Length: 6.3mm-20mm |
| Insulation Resistance |
>=10000MΩ |
| Lead Type |
Radial, Axial |
| Lead Spacing |
2.5mm-10mm |
| Rated Voltage |
50V-1000V |
| Package Type |
Tape And Reel |
| Product Name |
Metallized Polypropylene Film Capacitor |
Applications
When it comes to reliable electronic components for various applications, the CL Metallized Polypropylene Film Capacitor is a top choice. Originating from China, this capacitor offers exceptional performance and durability, making it suitable for a wide range of scenarios.
The CL Metallized Polypropylene Film Capacitor is designed for through-hole mounting, with lead spacing options ranging from 2.5mm to 10mm. This flexibility in lead spacing allows for easy integration into different circuit layouts, enhancing overall design efficiency.
With an operating temperature range of -40°C to +85°C, this capacitor is well-suited for demanding environments where temperature fluctuations are common. Whether it's in a power supply unit, automotive system, or industrial machinery, the CL Metallized Polypropylene Film Capacitor delivers consistent performance under varying temperature conditions.
One of the key advantages of the CL Metallized Polypropylene Film Capacitor is its metallized film construction, which ensures superior electrical properties and long-term reliability. The metalized polypropylene film used in this capacitor provides excellent insulation and high dielectric strength, making it ideal for applications where stable capacitance and low loss are crucial.
In power supply units, the CL Metallized Polypropylene Film Capacitor plays a critical role in filtering unwanted noise and ensuring smooth operation. Automotive electronics benefit from its ability to withstand harsh environmental conditions and provide consistent electrical performance. In industrial settings, this capacitor helps maintain the efficiency and reliability of control systems and equipment.
Overall, the CL Metallized Polypropylene Film Capacitor is a versatile and dependable component that excels in diverse application scenarios. Whether it's in a power supply, automotive system, or industrial machinery, this capacitor delivers consistent performance and reliability, making it a preferred choice for engineers and designers looking for high-quality electronic components.
Customization
Product Customization Services for the Metallized Polypropylene Film Capacitor:
- Brand Name: CL
- Place of Origin: CHINA
- Lead Spacing: 2.5mm-10mm
- Operating Temperature: -40°C~+85°C
- Insulation Resistance: >=10000MΩ
- Capacitance: 0.01uF-2.2uF
- Dissipation Factor: <=0.1
Customize your Metalized Film Capacitor today with these options!
Metallizing Polypropylene Film Capacitor customization services available for your specific needs.
Enhance your electronic projects with our Metallized Polypropylene Film Capacitor customization options.
Support and Services
The Metallized Polypropylene Film Capacitor product offers comprehensive Product Technical Support and Services to ensure optimal performance and reliability. Our team of experts is available to provide assistance with product selection, installation guidance, troubleshooting, and any other technical queries you may have. Additionally, we offer services such as customization, testing, and product recommendations to meet your specific requirements and applications.
Packing and Shipping
Product Packaging:
The Metallized Polypropylene Film Capacitor is carefully packaged in a protective material to ensure safe delivery. Each capacitor is sealed in a plastic bag to prevent dust and moisture from damaging the product during shipping.
Shipping:
Our company uses reliable shipping services to deliver the Metallized Polypropylene Film Capacitor to customers worldwide. The capacitors are securely packed in a sturdy cardboard box to prevent any damage during transit. We take great care in handling and shipping our products to ensure they reach our customers in perfect condition.
FAQ
Q: What is the brand name of this capacitor?
A: The brand name of this capacitor is CL.
Q: Where is this capacitor manufactured?
A: This capacitor is manufactured in China.
Q: What type of capacitor is this?
A: This is a Metallized Polypropylene Film Capacitor.
Q: What are the key features of this capacitor?
A: This capacitor offers high reliability, low losses, and excellent stability over time.
Q: Is this capacitor suitable for use in high-frequency applications?
A: Yes, this capacitor is suitable for high-frequency applications due to its excellent performance characteristics.
