| 피크 전류: | 0.54A | 공칭 용량: | 1.0F |
|---|---|---|---|
| 72시간누설전류（@25℃: | 6μA | 서지 전압: | 2.85V |
| 충전/방전 시간: | 빠른 | 고온 부하: | +85℃≤2.7V ,1000h ,︱ΔC/C︱≤30%, ESR≤4 |
| 정상상태 습열: | +40℃, 90--95%RH,240h,︱ΔC/ C︱≤30%, 지정된 값의 배ESR≤4 | 무게: | 가벼운 중량 |

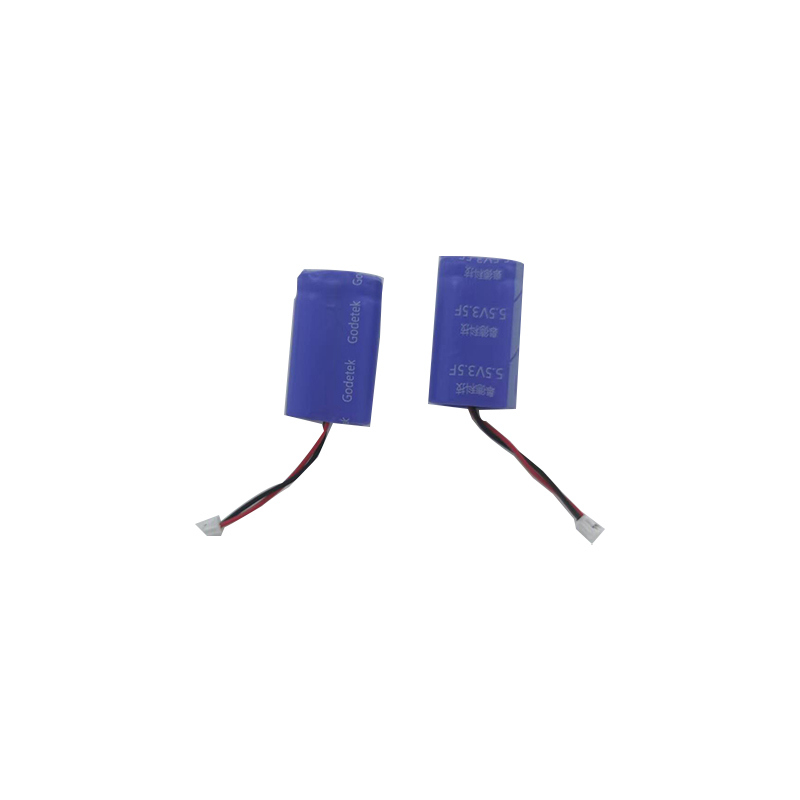

| 강조하다: | 5.5V3.5F super capacitor,super capacitor for fast charging,fast charging super capacitor |
||
A High Capacity Capacitor designed to perform exceptionally well in various challenging conditions. With a high temperature load rating of +85℃≤2.7V for 1000 hours and a maximum change in capacitance of ≤30% and ESR of ≤4, this capacitor can reliably operate in high temperature environments without compromising performance.
Having a nominal capacity of 1.0F, the Super Capacitor offers a robust energy storage solution for a wide range of applications. Its operating temperature range of -40~ +85 ℃ @2.7V ensures versatility and adaptability in different climate conditions.
Temperature characteristics further enhance its reliability and efficiency. At +85℃, the maximum change in capacitance is ≤30% and ESR is ≤ the value at 25℃. Similarly, at -40℃, the maximum change in capacitance is ≤30% and ESR is ≤4 when compared to the value at 25℃, showcasing stable performance across varying temperatures.
For added durability and longevity, the Super Capacitor boasts a leakage current of 6 μA at 25℃ for 72 hours, ensuring minimal power loss and maintaining integrity over extended periods.
| Parameter | Value |
|---|---|
| Customize | Provide Sample Services |
| 72hrs Leakage current (@25℃) | 6 μA |
| Charge/Discharge Time | Rapid |
| Weight | Lightweight |
| Peak current | 0.54A |
| Rated voltage | 2.7V |
| Surge voltage | 2.85V |
| ESR | DC @25℃, ≤1500 MΩ; AC 1kHz@25℃, ≤240 MΩ |
| Steady-state damp heat | +40℃, 90-95%RH, 240h, |△C/C|≤30%, Times The Specified Value ESR≤4 |
| Cycle durability | Add The Rated Voltage, Charge And Discharge Experiments At Room Temperature Cycle 500,000 Times. |△C/C|≤30% ESR≤4 |
CL Super Capacitors are a reliable choice for various applications requiring high capacity capacitors. With a nominal capacity of 1.0F, these capacitors are designed to meet modern electronic device demands.
Built to withstand high temperature loads (+85℃≤2.7V for 1000 hours) while maintaining |△C/C|≤30% and ESR≤4, they're suitable for environments with temperature fluctuations.
Their rapid charge/discharge times and 0.54A peak current make them ideal for quick energy storage/release applications and handling power surges.
Customization options through sample services ensure they meet specific application requirements across various industries.
The Super Capacitor is carefully packaged in a sturdy cardboard box with protective foam to prevent damage during shipping.
Orders are processed within 1-2 business days and shipped using reputable courier services for timely delivery.
