| ESR: | DC @25℃, 1500MΩ 이하 AC 1kHz@25℃ 240MΩ 이하 | 피크 전류: | 0.54A |
|---|---|---|---|
| 정상상태 습열: | +40℃, 90--95%RH,240h,︱ΔC/ C︱≤30%, 지정된 값의 배ESR≤4 | 고온 부하: | +85℃≤2.7V ,1000h ,︱ΔC/C︱≤30%, ESR≤4 |
| 무게: | 경량 | 사용자 정의: | 샘플 서비스를 제공하세요 |
| 작동 온도: | -40~ +85 ℃ @2.7V | 공칭 용량: | 1.0F |
| 강조하다: | 2.7V 400F super capacitor,super capacitor for start-stop system,automotive super capacitor with warranty |
||

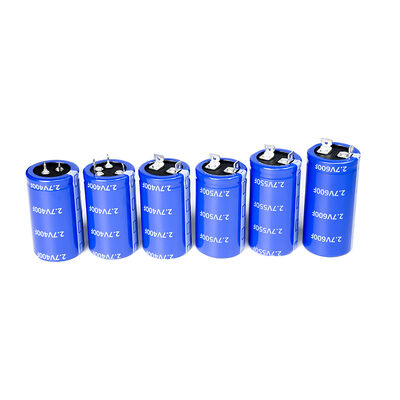

The Super Capacitor is an advanced High Capacity Capacitor engineered to deliver exceptional performance and reliability across diverse applications. Designed to withstand harsh environmental conditions, this capacitor offers outstanding stability and durability, making it ideal for industries requiring consistent power storage and rapid energy delivery.
| Parameter | Specification |
|---|---|
| Steady-state damp heat | +40℃, 90-95% RH, 240h, |ΔC/C| ≤ 30%, ESR ≤ 4 |
| High temperature load | +85℃ ≤ 2.7V, 1000h, |ΔC/C| ≤ 30%, ESR ≤ 4 |
| Leakage current (@25℃) | 6 μA |
| Operating temperature | -40 ~ +85 ℃ @ 2.7V |
| ESR | DC @ 25℃ ≤ 1500 MΩ, AC 1kHz @ 25℃ ≤ 240 MΩ |
| Temperature characteristics | +85℃ |ΔC/C| ≤ 30%, ESR ≤ (25℃); -40℃ |ΔC/C| ≤ 30%, ESR ≤ 4 (25℃) |
| Cycle durability | 500,000 cycles, |ΔC/C| ≤ 30%, ESR ≤ 4 |
| Rated voltage | 2.7V |
| Weight | Lightweight |
The CL Super Capacitor is designed to meet demanding requirements across various modern applications:
We provide comprehensive customization services with sample availability to meet specific project requirements. Our technical support team offers:
Each Super Capacitor is securely packaged in anti-static bags with foam padding inside sturdy cardboard boxes. Bulk orders receive additional protective packaging to ensure safe transit.
