| 작동 온도: | -55C 내지 +125C | 패키지: | SMD /는 하강합니다 |
|---|---|---|---|
| 유전력: | ≥3000VAC | 노화율: | ≤1% |
| 전력 등급: | 0.5W-10W | 장착 유형: | 통로 |
| 누설 전류: | 0.1mA 이하 | 단열성 저항: | ≥1000mΩ |
| 클램핑 전압 (VC): | Inrush 전류에서 전압 값을 지정하여 보호 레벨을 반영합니다 (예 : 8/20μs 파형 미만의 테스트) | 흐름 용량 (IP: | 견딜 수있는 최대 인수 전류 (예 : 8/20μs의 파형 미만의 10ka |
| 강조하다: | 7D511K metal oxide varistor,1pF-1000pF capacitance varistor,industrial power module varistor |
||

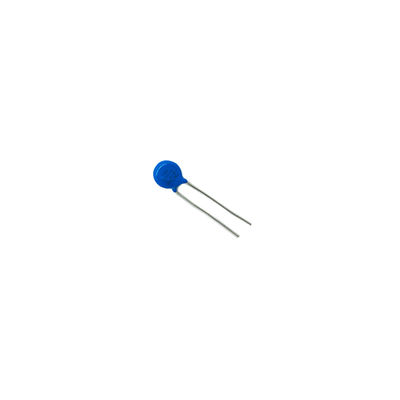

With ≤1% aging rate and ±20% resistance tolerance, designed for AC/DC input terminal protection in industrial power modules.
| Attribute | Value |
|---|---|
| Operating Temperature | -55℃ To +125℃ |
| Package | SMD/DIP |
| Dielectric Strength | ≥3000VAC |
| Aging Rate | ≤1% |
| Power Rating | 0.5W-10W |
| Mounting Type | Through-Hole |
| Leakage Current | ≤0.1mA |
| Insulation Resistance | ≥1000MΩ |
| Clamping voltage (Vc) | Specified voltage value at inrush current (tested under 8/20μs waveform) |
| Flow capacity (Ip) | Maximum inrush current withstand (e.g., 10kA under 8/20μs waveform) |
The Metal Oxide Varistor (MOV) is a Voltage-Dependent Resistor (VDR) designed to protect electrical circuits from overvoltage events. This component is crucial in safeguarding electronic devices by diverting excess voltage away from sensitive components.
Key attributes include:
This Metal Oxide Varistor (brand VDR) is available in models 7D, 10D, 14D, and 20D, providing over-voltage protection for:
Each varistor is individually protected in plastic casing and shipped in sturdy cardboard boxes with proper cushioning to prevent transit damage.
The brand name is VDR.
The available model numbers are 7D, 10D, 14D, and 20D.
This product is manufactured in China.
It protects electrical circuits from overvoltage spikes.
They are typically designed for one-time use after absorbing a significant surge and should be replaced.
