| 누설 전류: | 0.1mA 이하 | 패키지: | SMD /는 하강합니다 |
|---|---|---|---|
| 유형: | 바리스터 | 전력 등급: | 0.5W-10W |
| 단열성 저항: | ≥1000mΩ | 제품 이름: | 금속 산화 배리스터 |
| 작동 온도: | -55C 내지 +125C | 정전용량 범위: | 1pF-1000pF |
| 공칭 전압 (VN): | 1MA DC 전류의 단자 전압은 회로의 정상 작동 전압의 20% ~ 30% 여야합니다. | 최대 연속 작동 전압 (VAC/VDC): | 장기 견딜 수있는 전압은 일반적으로 VN의 80% ~ 85%입니다 |
| 강조하다: | through-hole mount varistor,low dissipation factor varistor,household appliance varistor |
||
| Attribute | Value |
|---|---|
| Leakage Current | ≤0.1mA |
| Package | SMD/DIP |
| Type | Varistor |
| Power Rating | 0.5W-10W |
| Insulation Resistance | ≥1000MΩ |
| Product Name | Metal Oxide Varistor |
| Operating Temperature | -55℃ To +125℃ |
| Capacitance Range | 1pF-1000pF |
| Nominal voltage (Vn) | The terminal voltage at 1mA DC current must be 20% to 30% of the normal operating voltage of the circuit |
| Maximum continuous operating voltage (VAC/Vdc) | Long-term withstand voltage is usually 80%~85% of Vn |
A Metal Oxide Varistor (MOV) is a type of transient-voltage-suppressor component that provides protection against voltage spikes and surges in electronic circuits. MOVs are designed to handle transient overvoltage conditions by clamping the voltage to a safe level, thereby protecting sensitive components in the circuit.
The Metal Oxide Varistor product being discussed here offers a resistance tolerance of ±20%, ensuring reliable performance within specified limits. This tolerance range allows for variations in resistance while maintaining the functionality of the varistor.
With a capacitance range of 1pF to 1000pF, this Metal Oxide Varistor can effectively filter out high-frequency noise and interference, enhancing the overall performance of the circuit. The capacitance value plays a crucial role in determining the varistor's ability to respond to transient voltage events.
| Parameter | Value |
|---|---|
| Operating Temperature | -55℃ To +125℃ |
| Power Rating | 0.5W-10W |
| Voltage Range | 6V-1500V |
| Resistance Tolerance | ±20% |
| Leakage Current | ≤0.1mA |
| Material | Metal Oxide |
| Aging Rate | ≤1% |
| Type | Varistor |
| Insulation Resistance | ≥1000MΩ |

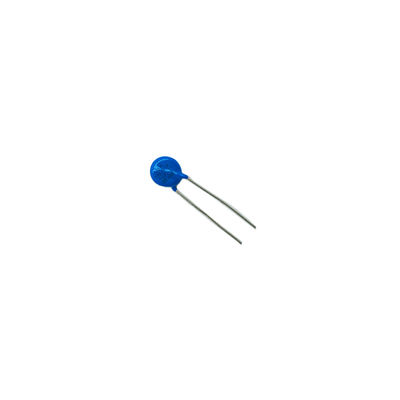

The Metal Oxide Varistor product from VDR, with model numbers 7D, 10D, 14D, and 20D, is a versatile Over Voltage Protection Device suitable for a wide range of applications. Originating from China, these Varistors are designed to provide effective transient voltage suppression in various scenarios.
With a voltage range spanning from 6V to 1500V, the Metal Oxide Varistor is a reliable choice for protecting sensitive electronic components from voltage spikes. Its metal oxide composition and ±20% resistance tolerance ensure durability and consistent performance in demanding environments.
Product Customization Services for Metal Oxide Varistor:
Our Metal Oxide Varistors serve as Surge-Arrestor-Device, Automatic-Voltage-Regulator, and Voltage-Dependent-Resistor.
The Metal Oxide Varistor product comes with comprehensive Product Technical Support and Services to ensure smooth operation and maximum performance. Our dedicated team of experts is available to assist with any technical queries or issues that may arise during installation or use of the product.
The Metal Oxide Varistor is carefully packaged in a sturdy cardboard box to ensure its protection during shipping. Each varistor is placed in a tray with individual compartments to prevent any damage during transit. The box is sealed securely with packaging tape to keep the varistors safe and secure.
A: The brand name is VDR.
A: The available model numbers are 7D, 10D, 14D, and 20D.
A: This product is manufactured in CHINA.
A: Metal Oxide Varistors are used to protect electrical and electronic devices from voltage surges and spikes.
A: Metal Oxide Varistors work by rapidly changing resistance when exposed to high voltage, diverting excess current away from sensitive components.
